Fire Rated Door
The Expert in Fire Rated Door and Safety Solutions
Fire Rated Doors
Fire rated doors are designed specifically to slow down the spread of fire and smoke between different sections of the building. It allows occupants to evacuate from the building safely. It further serves as a protective barrier to safeguard important company assets in the event of fire.
Fire rated doors can be constructed with different materials such as timber wood and steel, which provides different range of fire ratings. It is crucial to equip commercial buildings with suitable fire rated doors for legal compliance in Malaysia.

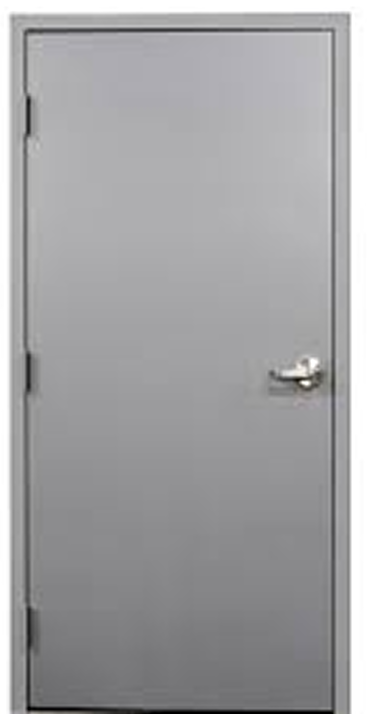

Steel Doors
Steel fire-rated doors are highly durable and designed to provide excellent fire resistance, making them ideal for commercial, industrial, and high-risk environments. Constructed from high-quality steel, these doors are engineered to withstand intense heat and prevent the spread of fire and smoke for a specified time duration ( 60 or 120 minutes). They often come with additional features like insulation cores, reinforced frames, and smoke seals, to ensure superior performance and safety compliance. These doors are suitable for applications such as stairwells, fire exits, and areas requiring strict fire protection standards.
Fire Rating
The door shall have a fire rating of 75 and 135 minutes, and withstand temperatures of up to 1000°C.
Material and Construction:
1-Hour Rating Door
- Standard Frame
(Depth = 125mm, Thickness 1.5mm) - Standard Panel Face Sheet
(Thickness from 0.6mm) - Standard Panel
(Thickness = 50mm) - Galvanised steel door panel with solid calcium silicate core
(Thickness = 0.8mm)
2-Hour Rating Door
- Standard Frame
(Depth = 125mm, Thickness 1.5mm)
Surface finish
Steel frame and door panel are applied with single coat of anti-rust primer as minimum standard
Additional Hardware Options
- Panic/Push bar
- Magnetic door holder
- Vision panel
Certified by:

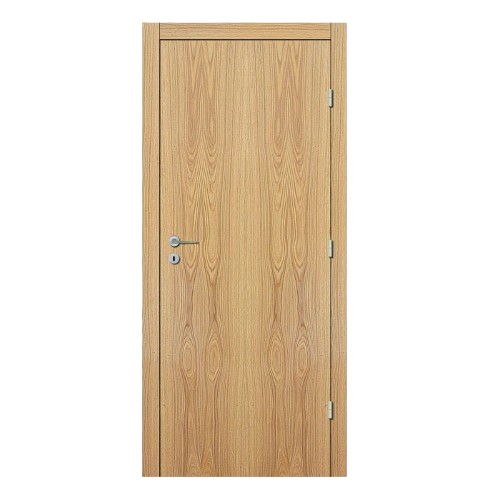

Timber Doors
Timber fire-rated doors combine aesthetic appeal with fire protection, offering a natural wood finish that blends seamlessly into interior designs while providing fire resistance. Crafted from fire-retardant timber or veneered panels with a solid core, these doors are designed to delay the spread of fire and smoke for a specified time (60 or 90 minutes). Timber fire-rated doors are commonly used in offices, residential buildings, and hospitality settings where both safety and style are important. They can also be customized with various finishes and hardware to match the interior decor.
Fire Rating
The door shall have a fire rating of 75 and 135 minutes, and withstand temperatures of up to 1000°C.
Material and Construction:
1-Hour Rating Door
- Standard Frame
(Depth = 125mm, Thickness 1.5mm) - Standard Panel Face Sheet
(Thickness from 0.6mm) - Standard Panel
(Thickness = 50mm) - Galvanised steel door panel with solid calcium silicate core
(Thickness = 0.8mm)
2-Hour Rating Door
- Standard Frame
(Depth = 125mm, Thickness 1.5mm)
Surface finish
Steel frame and door panel are applied with single coat of anti-rust primer as minimum standard
Additional Hardware Options
- Panic/Push bar
- Magnetic door holder
- Vision panel
Certified by:
Key Features Of Our Fire Rated Doors
Fire Obstruction and Resistant
Excellent Sound isolation properties
Made of high quality and durable materials
Door Installation Service
Our company provides expert door installation services, ensuring secure, functional, and visually appealing results. From interior to custom doors, our skilled technicians deliver precise, efficient installations tailored to your needs. Whether for homes or offices, we guarantee quality workmanship, smooth operation, and exceptional customer service for a seamless, hassle-free experience.
Frequently Asked Questions
Your building may require fire-rated doors depending on local fire codes, occupancy type, and building use. Typically, commercial buildings, high-rises, hospitals, and residential complexes require them in stairwells, corridors, and fire exits to prevent fire spread and ensure safe evacuation.

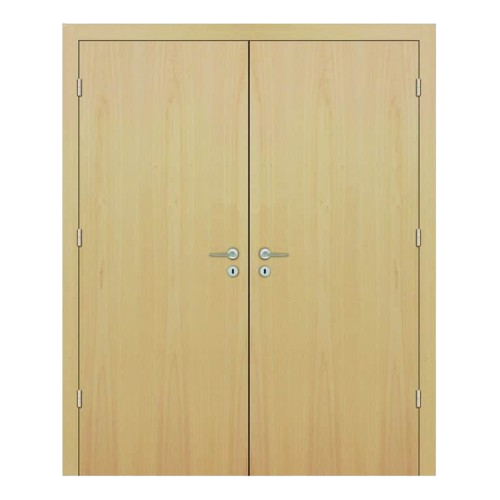

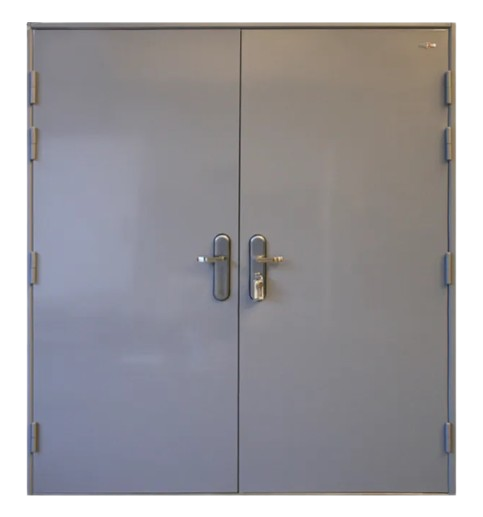

Single leaf doors are ideal for smaller openings and regular traffic, while double leaf doors are used for wider entrances, emergency exits, and high-traffic areas. Your choice depends on space, accessibility, and fire safety requirements, ensuring compliance with building codes.
A 1-hour fire-rated door can resist fire for 60 minutes, while a 2-hour fire-rated door provides protection for 120 minutes. The choice depends on the building’s fire compartmentalization needs, with higher ratings required in areas with greater fire risk or stricter safety regulations.
